| ⚡ Quick Decision Guide | Underfloor Heating | Radiators |
|---|---|---|
| Comfort level | ✅ Even, luxurious warmth | ⚠️ Uneven, hot spots near unit |
| Running costs (avg UK home) | ✅ £270–£420/year | ⚠️ £290–£600/year |
| Install cost (3-bed house) | ⚠️ £5,000–£8,000 | ✅ £4,000–£7,000 |
| Heat pump compatible | ✅ Perfect match | ⚠️ Needs upsizing |
| Lifespan | ✅ 25–50 years | ⚠️ 10–15 years |
| Best for | New builds, renovations, heat pumps | Retrofits, older properties, tight budgets |
The short answer: For long-term comfort, efficiency, and future-proofing — underfloor heating wins. For quick, affordable retrofits — radiators still have a place. Read on for the full picture backed by real 2025–2026 data.
How Underfloor Heating and Radiators Actually Work
How Underfloor Heating Works
Underfloor heating (UFH) turns your entire floor into one giant, gentle heat emitter. There are two main types to know about:
- Hydronic (water-based) UFH: Warm water at just 35–45°C (95–113°F) flows through a network of pipes laid beneath your floor screed or insulation boards. Because the surface area is enormous, even this low temperature creates comfortable, even warmth throughout the room.
- Electric UFH: Heating cables or mats sit beneath the floor finish. Simpler to install, but generally more expensive to run. Best suited to smaller areas like bathrooms or kitchens.
In both cases, heat rises gently and evenly upward from the floor — warming people and objects directly rather than just the air.

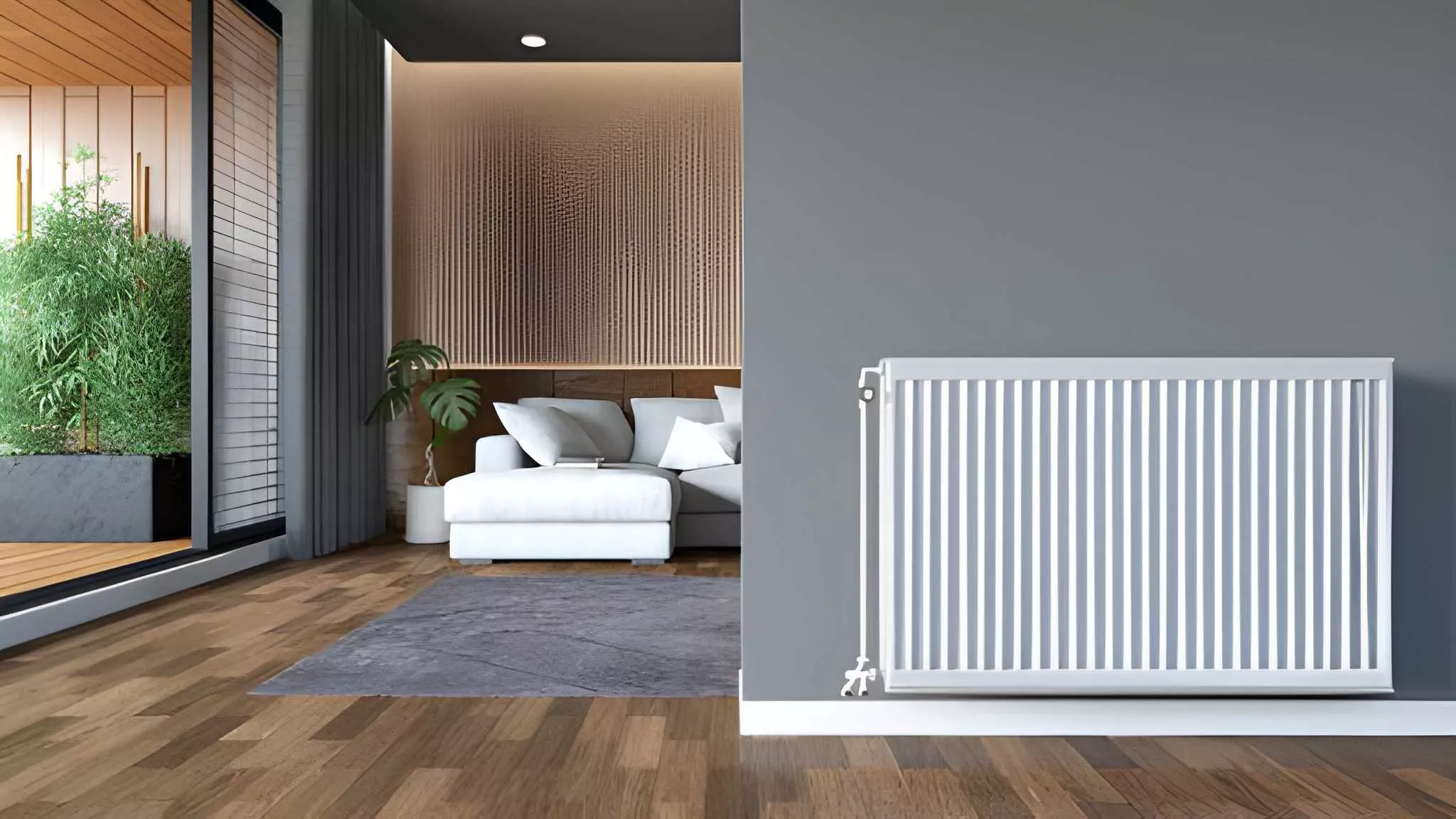

How Radiators Work
Radiators work very differently. Hot water — typically at 60–80°C (140–176°F) — flows into wall-mounted metal panels. The panels heat the surrounding air, which then rises toward the ceiling through a process called convection.
This creates a predictable problem: warm air pools near the ceiling while floor level stays cooler. Furthermore, as air circulates, it stirs up dust and allergens. Modern low-temperature radiators designed for heat pumps help reduce this gap — but the core convection mechanism remains unchanged.
“The fundamental physics of radiant versus convective heat transfer explains why underfloor systems consistently outperform radiators on thermal comfort metrics. Radiant heat warms the body directly — convective heat warms the air around you.”
Comfort Comparison: Radiant Heat vs Convection – Which Feels Better?
Why Radiant Heat Feels More Comfortable
Most people who switch to underfloor heating describe the experience as “walking on sunshine.” That is not just marketing language — there is real science behind it. Because UFH warms from the floor up, your feet stay warm first. Moreover, the heat distributes evenly from floor to ceiling with no cold spots, no draughts, and no temperature stratification.
Additional comfort benefits of UFH include:
- 🌡️ Even warmth at every level — no hot ceiling, cold floor problem
- 💧 Natural humidity is preserved — radiant heat does not dry out the air like convective systems
- 🌬️ No air movement — dust and allergens stay settled, making it ideal for allergy sufferers
- 🦶 Warm floors underfoot — especially appreciated on tile and stone surfaces in bathrooms and kitchens
Studies and user surveys consistently rate radiant floor heating higher for overall thermal comfort compared to conventional radiator systems.
What Radiators Do Well — and Where They Fall Short
Radiators are not without merit. They respond faster to thermostat changes in older, less-insulated homes. Additionally, they are familiar, widely understood, and easy to control room by room with thermostatic radiator valves (TRVs).
However, their comfort limitations are real:
- ⚠️ Heat concentrates near the radiator unit — cooler further away
- ⚠️ Warm air rises immediately, leaving feet and lower body cooler
- ⚠️ Convection currents circulate dust and reduce indoor air quality
- ⚠️ Air feels drier — especially noticeable in winter months
Verdict: UFH delivers noticeably superior comfort for the vast majority of modern homes — particularly those with good insulation.
Energy Efficiency and Running Costs: Real 2025–2026 Data
Operating Temperature — Why It Matters for Your Bills
The single biggest reason UFH is more efficient comes down to operating temperature. Hydronic UFH runs at just 35–45°C (95–113°F). Radiators need 60–80°C (140–176°F) to heat a room effectively. That difference is enormous in energy terms.
Lower flow temperatures mean your boiler or heat pump works far less hard to maintain comfort. Furthermore, because UFH heats people and objects directly through radiation, less energy is wasted warming air that simply rises to the ceiling unused.
Annual Running Cost Comparison (Real 2025 Figures)
| Feature | Hydronic UFH | Radiators (Gas) | UFH Saving |
|---|---|---|---|
| Operating Temp | 35–45°C (95–113°F) | 60–80°C (140–176°F) | Lower temp = less energy |
| Annual Running Cost | £270–£420/year | £290–£600/year | 15–25% (up to 35%) |
| Efficiency Gain | Radiant + large surface area | Convection (heat lost upward) | 15–35% less energy used |
| Best Heat Source | Heat pump, gas boiler, solar | Gas boiler (mainly) | UFH more future-proof |
What the Numbers Mean in Plain English
For an average well-insulated UK home, switching from radiators to hydronic UFH could save you £100–£180 per year on energy bills. Moreover, in a well-insulated new build, savings of up to 35–40% are achievable.
“When paired with a heat pump, underfloor heating operating at low flow temperatures can achieve system efficiencies of 300–400%. That means for every unit of electricity consumed, you get three to four units of heat — something a gas radiator system simply cannot match.”
Electric UFH costs more per kWh to run than hydronic systems. However, it still outperforms poorly controlled radiators in small, zoned areas like bathrooms — especially when paired with a smart timer.
Installation Costs and Process: Upfront Investment Breakdown
Underfloor Heating Installation Costs
UFH costs more upfront — but the gap is often smaller than people expect. Furthermore, when you factor in lifespan and running-cost savings, the total cost of ownership frequently favours UFH over a 10–15 year period.
- Hydronic UFH (new build): £50–£75 per m²
- Hydronic UFH (retrofit): £95–£110 per m² (floor lifting required)
- Electric UFH: £50–£85 per m² (lower install cost, higher running cost)
- Typical 3-bed house ground floor total: £5,000–£8,000 for hydronic; £3,000–£6,000 for electric
Radiator Installation Costs
A full radiator replacement for a 3-bedroom house typically costs £4,000–£7,000 including pipework and labour. Individual radiator units range from £150–£500 each before fitting. While cheaper upfront, remember that radiators need replacing every 10–15 years — whereas UFH pipes last 25–50 years.
| System | New Build (per m²) | Retrofit (per m²) | 3-Bed Total |
|---|---|---|---|
| Hydronic UFH | £50–£75 | £95–£110 | £5,000–£8,000 |
| Electric UFH | £50–£75 | £60–£85 | £3,000–£6,000 |
| Radiators | £150–£500 per unit | £150–£500 per unit | £4,000–£7,000 |
Payback Period — When Does UFH Pay for Itself?
Based on average energy savings of £100–£180 per year, a hydronic UFH system typically pays back its extra installation cost within 4–10 years. After that point, every year of lower bills is pure saving. Moreover, UFH adds measurable value to your property — increasingly important as buyers prioritise energy efficiency ratings.
Aesthetics, Space Usage, and Design Freedom
The Hidden Advantage of Underfloor Heating
One of the most underrated benefits of UFH is something you simply cannot see — and that is exactly the point. Because the entire system is hidden beneath the floor, your walls are completely free. Furthermore, there are no bulky panels to design around, no pipework to hide, and no radiator covers eating into your living space.
This creates real, practical design freedom:
- 🛋️ Place furniture anywhere — no need to leave clearance in front of radiators
- 🪟 Use every wall — full-length windows, built-in wardrobes, and open shelving become straightforward
- 🏠 Cleaner, more minimal interiors — especially valuable in open-plan living spaces
- 🚿 Warm bathroom floors — luxury underfoot on cold tile or stone surfaces every morning
Can Radiators Ever Match That Design Freedom?
Modern radiators have come a long way aesthetically. Today, you can find designer column radiators, mirror radiators, and slim vertical panels that double as wall art. However, they still occupy wall space — and that space is permanently committed once pipework is installed.
Additionally, radiators positioned under windows (the traditional location) can conflict with modern full-height glazing trends. In short — radiators offer style options, but UFH offers true freedom.
Suitability for Different Homes: New Builds, Retrofits, and Heat Pumps
New Builds and Well-Insulated Homes
If you are building new or undertaking a major renovation, UFH is the clear first choice. Installing pipes during the build phase adds minimal extra cost compared to retrofitting later. Furthermore, new builds typically have the high insulation levels that allow UFH to perform at its absolute best.
Well-insulated homes retain heat so effectively that UFH operating at low temperatures can maintain comfortable room temperatures with minimal energy input — exactly what modern building regulations are pushing toward.
Retrofits and Older Properties
Retrofitting UFH into an existing home is more complex and more expensive — especially in older properties with solid floors or limited ceiling height. In these situations, radiators or a hybrid approach often make more practical sense.
However, do not rule out UFH entirely in retrofits. Specifically, consider it when:
- You are already lifting floors for renovation work
- You are converting a basement or extending the ground floor
- You are installing a new heat pump and want maximum efficiency
Heat Pumps — Why UFH Is the Perfect Partner
This is where the UFH advantage becomes impossible to ignore. Air source and ground source heat pumps work most efficiently at low flow temperatures — ideally 30–50°C (86–122°F). UFH operates comfortably within this range. Radiators, by contrast, typically need 60–80°C (140–176°F) to heat a room — forcing the heat pump to work harder and reducing its efficiency significantly.
“Pairing a heat pump with underfloor heating is not just recommended — it is the combination that unlocks the full potential of low-carbon heating. The two technologies were essentially designed for each other.”
Consequently, if you are planning a heat pump installation now or in the future, specifying UFH today is one of the smartest long-term decisions you can make.
Environmental Impact and Future-Proofing Your Heating
Carbon Footprint Comparison
Heating accounts for around 17% of total UK carbon emissions — making it one of the most important areas to address in the transition to net zero. In this context, the choice between UFH and radiators has real environmental consequences.
Because hydronic UFH operates at much lower temperatures, it uses significantly less energy to maintain the same level of comfort. Furthermore, lower energy consumption directly translates to lower carbon emissions — regardless of whether your heat source is a gas boiler, heat pump, or biomass system.
- 🌱 UFH with a heat pump: up to 70% lower carbon emissions than a gas radiator system
- 🌱 UFH with a gas boiler: still 15–35% lower emissions than radiators on the same boiler
- 🌱 UFH is fully compatible with solar thermal, biomass, and hydrogen-ready boilers
Compatibility With Renewables and Low-Carbon Systems
The UK government’s Future Homes Standard (coming into full effect from 2025 onwards) effectively requires new homes to be built with low-carbon heating systems. Moreover, the Boiler Upgrade Scheme currently offers £7,500 grants toward heat pump installation — making the UFH and heat pump combination more financially accessible than ever before.
“The homes being built and renovated today will still be in use in 2050 and beyond. Specifying low-temperature heating systems like UFH now is not just an efficiency decision — it is a future-proofing decision that protects homeowners from rising carbon taxes and energy costs.”
In short — UFH is not just the greener choice today. It is the only heating distribution system that remains fully compatible with every credible low-carbon heating technology on the horizon.
Underfloor Heating vs Radiators: Pros & Cons at a Glance
Underfloor Heating — Pros and Cons
- ✅ Superior thermal comfort — even, radiant warmth from floor to ceiling
- ✅ 15–35% lower running costs vs traditional radiators
- ✅ 25–50 year lifespan — minimal maintenance required
- ✅ No wall space used — complete interior design freedom
- ✅ Perfect heat pump partner — maximises low-carbon system efficiency
- ✅ Better air quality — no dust circulation, natural humidity preserved
- ✅ Adds property value — increasingly desirable to buyers
- ⚠️ Higher upfront installation cost — especially in retrofits
- ⚠️ Slower to install — more disruptive in existing homes
- ⚠️ Slower initial heat-up in very old, poorly insulated properties
Radiators — Pros and Cons
- ✅ Lower upfront cost — £4,000–£7,000 for a full 3-bed house
- ✅ Faster and easier to retrofit — minimal floor disruption
- ✅ Quick response time — heats rooms rapidly in older properties
- ✅ Wide range of styles — designer options available
- ✅ Familiar and well-understood — easy for any plumber to service
- ⚠️ Higher running costs — £290–£600/year vs £270–£420 for UFH
- ⚠️ Uneven heat distribution — hot near unit, cooler elsewhere
- ⚠️ Shorter lifespan — 10–15 years before replacement
- ⚠️ Poor heat pump compatibility — needs upsizing for low-temp operation
- ⚠️ Circulates dust — not ideal for allergy sufferers
Frequently Asked Questions About Underfloor Heating vs Radiators
Is underfloor heating better than radiators?
For comfort and long-term efficiency — yes. UFH provides even radiant warmth, better air quality, and 15–35% energy savings over traditional radiators. Radiators win only on upfront cost and ease of retrofit in older properties. For most modern homes, UFH is the superior choice overall.
Is underfloor heating cheaper to run than radiators?
Yes — for hydronic (water-based) systems. Annual running costs average £270–£420 for UFH versus £290–£600 for gas radiators in a typical UK home. Electric UFH costs more per kWh but can still be cheaper than radiators in small, well-zoned areas like bathrooms.
How much does underfloor heating cost to install compared to radiators?
Hydronic UFH costs £5,000–£8,000 for a typical 3-bedroom house ground floor. A full radiator replacement runs £4,000–£7,000. The gap is often just £1,000–£2,000 — and UFH pays this back through lower bills within 4–10 years, while lasting two to three times longer.
Can underfloor heating completely replace radiators?
Yes — in well-insulated homes, UFH works perfectly as the sole heat source. Many homeowners remove radiators entirely when installing UFH, particularly alongside heat pumps. Hybrid systems (UFH downstairs, radiators upstairs) are also a popular and cost-effective middle ground in older properties.
Does underfloor heating take longer to warm up than radiators?
Modern rapid-response UFH systems heat rooms comparably fast to radiators — often faster, due to the large surface area involved. Once up to temperature, UFH holds heat much longer, which actually reduces cycling and lowers bills. The old perception of slow heat-up times applies mainly to older, uninsulated systems.
Is underfloor heating worth it in 2026?
Absolutely — especially for new builds, extensions, and heat-pump homes. With rising energy prices, the £7,500 Boiler Upgrade Scheme grant, and the Future Homes Standard driving low-carbon heating adoption, the comfort, savings, and design benefits of UFH make it a smart, future-proof investment in 2026 and beyond.
Our Verdict — Which Delivers Superior Comfort?
The Clear Winner for Modern Homes
After comparing every key factor — comfort, running costs, installation, maintenance, design, and environmental impact — underfloor heating delivers superior comfort for the majority of modern homes. The even, radiant warmth from floor level, the absence of dust circulation, the lower energy bills, and the seamless compatibility with heat pumps all point firmly in one direction.
Choose UFH If You Are…
- ✅ Building a new home or undertaking a major renovation
- ✅ Installing or planning to install a heat pump
- ✅ Prioritising long-term comfort and energy efficiency
- ✅ Lifting floors for any reason — kitchen, bathroom, or extension work
- ✅ An allergy sufferer or someone who values air quality
Choose Radiators If You Are…
- ✅ Working with a tight upfront budget
- ✅ Retrofitting an older property with minimal disruption
- ✅ Renting or planning to sell in the short term
- ✅ Dealing with a draughty, poorly insulated older property
