10K vs 100K Thermistor: Which One for HVAC Thermostats?

10K vs 100K Thermistor: At a Glance

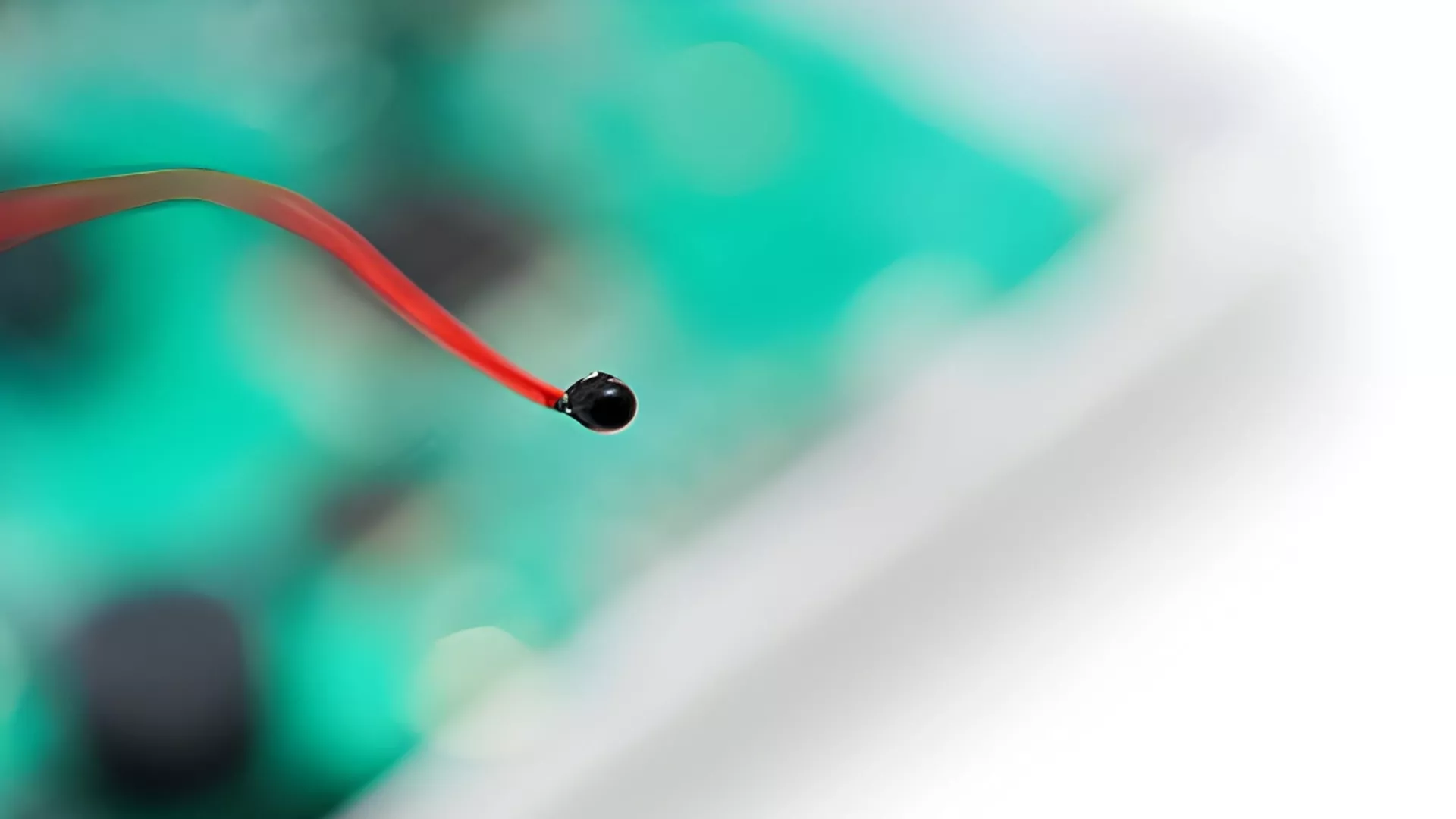

What Are 10K and 100K NTC Thermistors Anyway?

Understanding NTC in Plain English

NTC stands for Negative Temperature Coefficient. In simple terms, this means that as the temperature goes up, the electrical resistance goes down. Think of it like a gate that opens wider as things get warmer — letting more electricity through. This predictable behaviour makes NTC thermistors ideal for measuring temperature accurately inside HVAC systems and thermostats.

What Do the Numbers 10K and 100K Actually Mean?

The numbers refer to the nominal resistance at exactly 25°C (77°F). A 10K thermistor measures 10,000 ohms (10 kΩ) at that temperature. A 100K thermistor measures 100,000 ohms (100 kΩ) at the same temperature. That is the only starting point — from there, both sensors change resistance differently as temperatures rise or fall.

How They Work Inside a Thermostat

Inside your HVAC thermostat, the thermistor sits in a voltage divider circuit. This circuit produces a changing voltage as the resistance changes. That voltage is then read by an ADC (Analogue-to-Digital Converter), which turns it into a number the thermostat’s microprocessor can use. The processor then applies a mathematical formula — called the Steinhart-Hart equation — to convert that number into a precise temperature reading. The β-value (beta value) for a standard 10K Type II/III thermistor is typically around 3,974 K, while many 100K models sit closer to 4,260 K. These values shape the entire sensitivity curve of each sensor.

Resistance vs Temperature – Head-to-Head Comparison

Why Resistance Matters for HVAC Accuracy

The faster resistance changes with temperature, the easier it is for the ADC to detect small shifts. This is called sensitivity. A thermistor with a steep resistance curve gives your controller more data points per degree — meaning it can react faster and more accurately to changes in room or duct temperature. In the 0–50°C (32–122°F) range where most HVAC systems operate, the 10K thermistor has a noticeably steeper curve than the 100K, which is one of the main reasons it dominates the industry.

Full Resistance vs Temperature Table

Source: Standard NTC curves referenced by Vector Controls, Belimo, and BAPI — current 2026 datasheets.

Reading the Table: Where Each Type Wins

Self-Heating vs Noise – The Real Impact on HVAC Accuracy

What Is Self-Heating and Why Does It Matter?

Every thermistor generates a tiny amount of heat from the electrical current passing through it. This is called self-heating — and it is a problem because it can make the sensor read slightly higher than the actual air temperature. The formula behind this is straightforward: P = V²/R. This means that as resistance increases, power dissipation drops. A 100K thermistor — with 10× more resistance than a 10K — therefore produces roughly 10× less self-heating for the same supply voltage.

The Trade-Off: Why 100K Is Noisier

Here is the catch. While 100K thermistors run cooler electrically, they introduce more thermal noise into the circuit. Noise voltage rises proportionally to the square root of resistance (√R). In practical terms, this means a 100K thermistor in a low-current ADC circuit produces more electrical noise than a 10K thermistor — making it harder for the microprocessor to get a clean, stable reading without additional filtering.

What This Means in a Real HVAC Controller

In a typical HVAC controller running on a 5V or 3.3V voltage divider at less than 0.5 mA, the self-heating error of a 10K thermistor is less than 0.1°C (32.18°F) — essentially negligible in any real-world comfort application. The 100K is virtually zero. This is exactly why most manufacturers — including Honeywell, BAPI, and Neptronic — default to 10K. The noise is easy to manage with basic software filtering, and the self-heating is too small to matter in practice.

“In the vast majority of HVAC thermostat designs, self-heating from a 10K thermistor is simply not a meaningful source of error. The bigger risk is a poorly placed sensor or an unfiltered ADC input — not the thermistor type itself. Engineers who default to 100K to avoid self-heating often trade one small problem for a noisier signal and a less sensitive curve in exactly the temperature range they care about most.”

Temperature Range and Sensitivity – Which Handles HVAC Conditions Better?

The Standard HVAC Operating Range

Most residential and commercial HVAC thermostats are designed to control temperatures between 0°C and 50°C (32°F and 122°F). Some systems extend slightly further — down to -10°C (14°F) for cold climates or up to 70°C (158°F) for discharge-air sensors. This is the range that matters most when choosing a thermistor, and it is where the two types perform very differently.

Why 10K Dominates in the Comfort Zone

The steeper the resistance-temperature curve, the easier it is for the ADC to distinguish small temperature changes. In the 0–50°C (32–122°F) range, the 10K thermistor has a noticeably steeper dR/dT slope — meaning it produces a bigger resistance change per degree of temperature shift. This translates directly into better ADC resolution, faster response, and more precise control of your HVAC system. It is the core reason why the 10K is the default choice in room thermostats, return-air sensors, and discharge-air controllers.

Where 100K Pulls Ahead

Above 80°C (176°F), the picture changes. At these higher temperatures, the 10K thermistor has already dropped to very low resistance values — making ADC readings less reliable. The 100K, however, retains a useful, measurable resistance well into the high-temperature zone. Additionally, 100K thermistors are typically glass-encapsulated rather than epoxy-coated, making them physically more stable and durable at sustained high temperatures. This makes them the right tool for boiler limit sensors, solar thermal systems, and high-temperature duct monitoring.

10K Thermistors for Thermostats – Pros, Cons, and Real-World Use

The Pros of Choosing a 10K Thermistor

• Highest sensitivity in the 0–50°C (32–122°F) HVAC sweet spot
• Lower cost — widely manufactured and available in high volumes
• Fast response time — epoxy-coated versions respond in under 12 seconds
• Industry standard — compatible with most existing HVAC controller lookup tables
• Lower noise in standard 5V ADC divider circuits — easier signal conditioning
• Proven track record — used by Honeywell (Type II/III), BAPI, and Neptronic across thousands of installations

The Cons of the 10K Thermistor

• Slightly more self-heating if circuit current exceeds 1 mA — though still under 0.1°C (32.18°F) in typical HVAC use
• Epoxy coating limits maximum operating temperature to approximately 105–150°C (221–302°F)
• Not ideal for sustained exposure to extreme heat — can degrade faster than glass-sealed alternatives

Real-World Usage: The Industry Default

The numbers say everything. The 10K NTC thermistor is used in over 80% of modern HVAC thermostats and controllers. Whether you are looking at a basic programmable room stat or a sophisticated building management system (BMS) input module, the 10K is almost always the expected sensor type. Most HVAC controllers ship with their firmware and lookup tables pre-configured for 10K Type II or Type III curves — making it the path of least resistance for designers and installers alike.

100K Thermistors for Thermostats – Pros, Cons, and When They Shine

The Pros of Choosing a 100K Thermistor

• Minimal self-heating — approximately 10× less power dissipation than 10K at the same voltage
• Glass encapsulation — physically more robust and stable at sustained high temperatures
• Wider temperature range — reliable up to 250°C (482°F) in glass-sealed versions
• Lower current draw — a natural fit for battery-powered wireless thermostats and IoT sensors
• Better long-term stability in high-heat environments where epoxy coatings would degrade

The Cons of the 100K Thermistor

• Lower sensitivity in the standard 0–50°C (32–122°F) HVAC comfort range
• Higher electrical noise in ADC circuits — requires more careful signal filtering
• Higher cost in some volume tiers compared to standard 10K sensors
• Not plug-and-play — most HVAC controllers are not pre-configured for 100K curves

When the 100K Thermistor Is the Right Call

There are specific situations where the 100K genuinely outperforms the 10K. These include:

• 🔥 Boiler high-limit sensors — where temperatures regularly exceed 80°C (176°F)
• ☀️ Solar thermal and attic applications — sustained high heat demands glass encapsulation
• 🔋 Battery-powered or wireless thermostats — where every microamp of current matters for battery life
• 📡 Ultra-low-power IoT HVAC sensors — where minimising power consumption is a design priority

“The 100K thermistor is an excellent component — but it is often chosen for the wrong reasons in HVAC design. Engineers sometimes reach for it to eliminate self-heating concerns that are already negligible with a 10K in a properly designed circuit. Where the 100K truly earns its place is in high-temperature limit sensing and in wireless battery-operated devices where current draw directly impacts product lifespan.”

10K vs 100K in HVAC Thermostats – Which One Wins and Why?

The Direct Verdict

For 95% of HVAC thermostat applications — including room temperature control, return-air sensing, and discharge-air monitoring — the 10K thermistor wins. It delivers the best sensitivity in the temperature range that matters most, costs less, integrates easily with existing controllers, and has a proven track record across the entire industry. It is not even a close race for standard applications.

The 5% Exception: When 100K Is the Smarter Choice

The 100K earns its place in a small but important set of scenarios. If your application involves temperatures regularly above 80°C (176°F), the 100K is the safer, more reliable sensor. Similarly, if you are designing a battery-powered wireless thermostat or IoT sensor where minimising current consumption is critical, the 100K’s lower power draw gives it a genuine advantage. Outside of these two scenarios, defaulting to 10K is almost always the right engineering decision.

Side-by-Side Summary

How to Pick the Right Thermistor for Your Next HVAC Design

Start With Your Application Temperature Range

The single most important factor in choosing between a 10K and 100K thermistor is your expected operating temperature range. Before anything else, answer this question: will your sensor ever need to measure temperatures above 80°C (176°F) on a regular basis? If the answer is no — and for most room and duct applications it will be no — then the 10K is your starting point. If yes, move directly to the 100K.

Application-Based Decision Guide

• 🏠 Room temperature control (0–50°C / 32–122°F) → Use 10K Type II or Type III
• 💨 Return-air or discharge-air duct sensing → Use 10K Type II or Type III
• 🔥 Boiler high-limit or flue temperature sensing → Use 100K glass-sealed
• ☀️ Solar thermal or attic temperature monitoring → Use 100K glass-sealed
• 🔋 Battery-powered or wireless IoT thermostat → Lean toward 100K for lower current draw
• 🏢 BMS input modules and commercial HVAC controllers → Confirm spec sheet — almost always 10K

Match the Curve — This Step Is Critical

Simply buying a thermistor with the right nominal resistance is not enough. You must also match the exact resistance-temperature curve that your controller expects. Most HVAC controllers are factory-configured for a specific curve — typically 10K Type II or 10K Type III. Using a different curve — even with the same 10K nominal resistance — will produce inaccurate readings. Always check your controller’s datasheet or installation manual before ordering a replacement sensor.

ADC Resolution and Software Filtering Tips

Whichever thermistor you choose, always verify that your ADC has sufficient resolution for the temperature range you need. A 10-bit ADC is often the minimum for HVAC comfort control — 12-bit or higher is preferable for precision applications. Additionally, always implement software filtering — a simple moving average or low-pass filter — to smooth out noise in the ADC readings. This is especially important when using a 100K thermistor, which introduces more thermal noise into the circuit.

Frequently Asked Questions

What is the main difference between a 10K and 100K thermistor?

The main difference is their nominal resistance at 25°C (77°F) — 10,000 ohms for the 10K and 100,000 ohms for the 100K. This difference in resistance creates entirely different sensitivity curves, self-heating characteristics, and noise levels. The 10K is more sensitive in the standard HVAC comfort range. The 100K runs cooler electrically but introduces more noise and loses sensitivity in everyday temperature ranges.

Which is better for HVAC or thermostat applications — 10K or 100K?

For standard HVAC thermostat applications, the 10K is better in almost every case. It offers higher sensitivity in the 0–50°C (32–122°F) comfort range, costs less, and is compatible with the vast majority of existing HVAC controllers. The 100K is only the better choice for high-temperature applications above 80°C (176°F) or ultra-low-power wireless and IoT designs.

Does a 100K thermistor have less self-heating than a 10K?

Yes — significantly less. Because power dissipation follows the formula P = V²/R, a higher resistance means less heat generated by the sensor itself. A 100K thermistor produces approximately 10 times less self-heating than a 10K at the same supply voltage. However, in a typical HVAC circuit running below 0.5 mA, the 10K self-heating error is already less than 0.1°C (32.18°F) — which is negligible for comfort control purposes.

Can I swap a 10K thermistor for a 100K in my existing controller?

No — not without recalibrating the controller. The resistance-temperature curves are completely different between the two types. If you install a 100K thermistor in a controller expecting a 10K signal, the lookup table or Steinhart-Hart coefficients will produce wildly inaccurate temperature readings — potentially off by tens of degrees. This could cause your HVAC system to malfunction. Always replace a thermistor with the exact same type and curve specified by the controller manufacturer.

Why do some thermostats use 100K instead of the more common 10K?

Designers choose 100K in specific situations where its unique properties offer a genuine advantage. These include: high-temperature limit sensing (where glass encapsulation and wider range are essential), battery-powered wireless thermostats (where the lower current draw extends battery life), and solar or attic monitoring (where sustained heat would degrade epoxy-coated 10K sensors). Outside of these cases, 10K remains the standard.

Does resistance value affect accuracy and noise — does it really matter?

Yes — it matters more than many designers realise. The 10K thermistor gives better ADC resolution and lower noise in the 0–50°C (32–122°F) HVAC range because its steeper resistance curve produces a larger, cleaner signal change per degree. The 100K trades that sensitivity for lower self-heating — but introduces more thermal noise that requires careful filtering. In well-designed circuits, both can deliver accurate results. However, 10K is easier to work with in standard HVAC designs and requires less signal conditioning effort.

Conclusion

The Final Verdict on 10K vs 100K Thermistors

Choosing between a 10K and 100K NTC thermistor does not have to be complicated. For the vast majority of HVAC thermostat applications — room sensing, duct control, return-air monitoring — the 10K thermistor is the clear, proven winner. It delivers the best sensitivity where it counts most, integrates seamlessly with existing controllers, costs less, and has earned its place as the industry standard for good reason.

The 100K thermistor is not a lesser component — it is simply built for a different job. When temperatures climb above 80°C (176°F), or when battery life in a wireless device is a genuine design constraint, the 100K earns its place without question.
